EQUIPMENT |
QTY |
DIM |
|
UNIT CAPACITY |
MATERIAL |
SPECIFICATION |

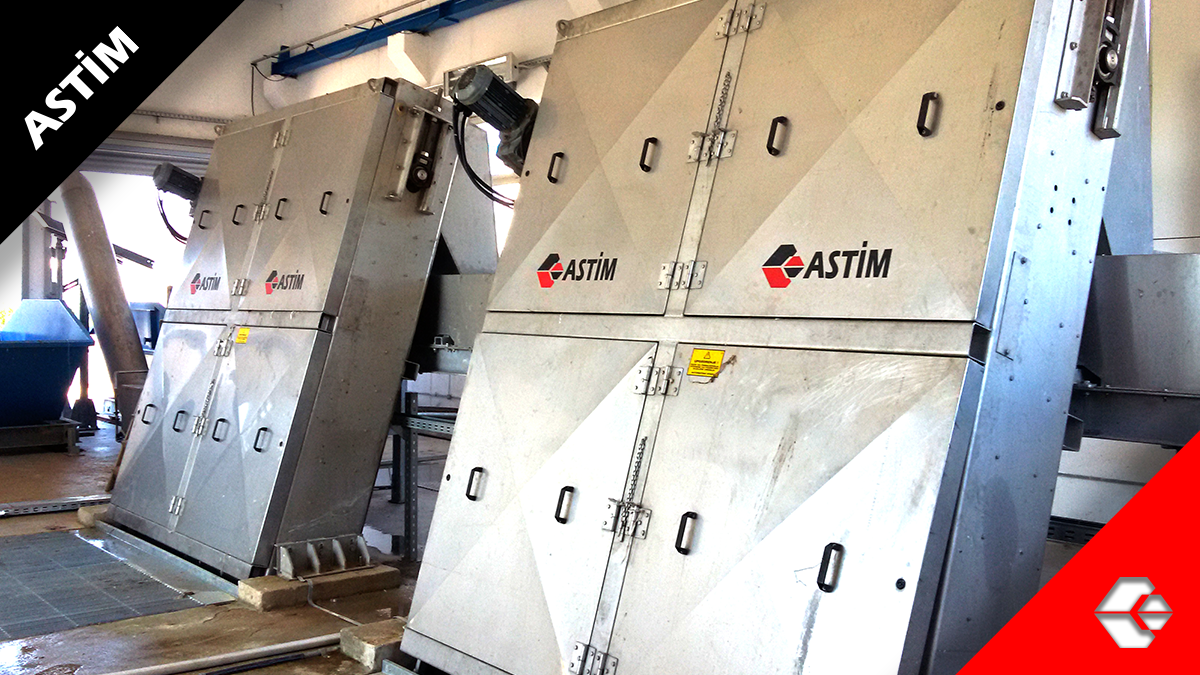

Front Raked Bar Screen |
2 |
W x H |
2500 x 6270 |
18720 m3/h |
AISI 316 |
75° inclined with 100 mm |

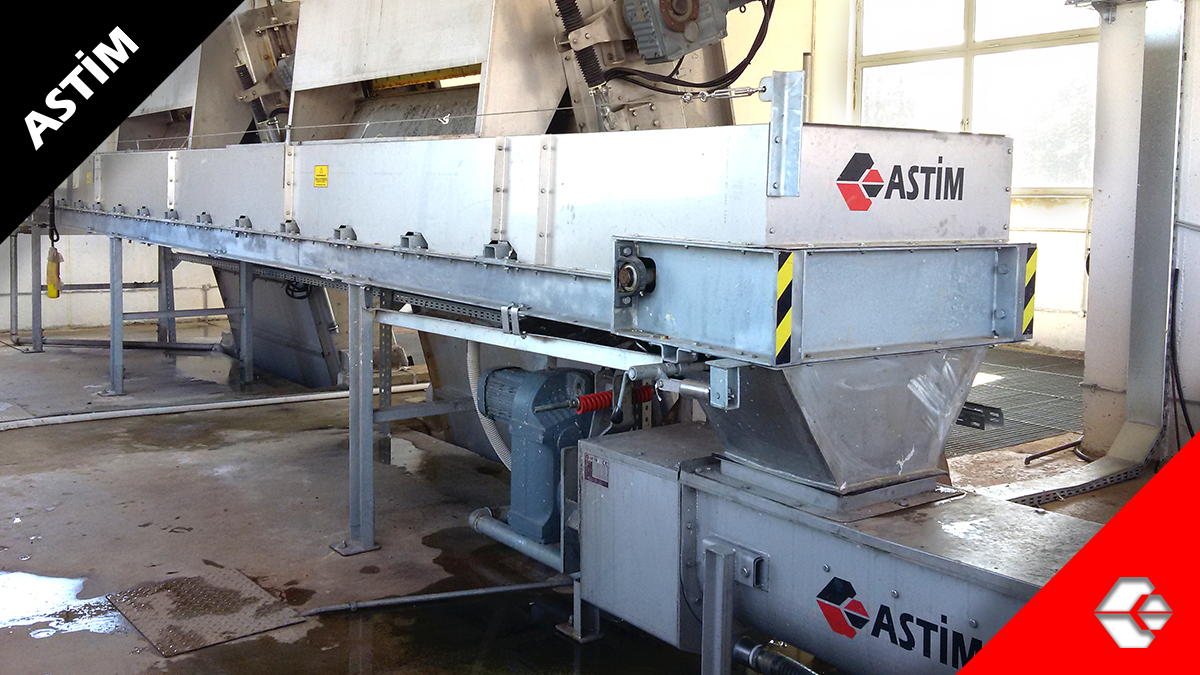

Belt Conveyor |
1 |
|
600 X 9000 |
|
CS + Galv. / AISI 316 |
|
Screw Compactor |
1 |
|
315 x 12100 |
|
CS + Epoxy / AISI 316 |
Horizontal with 4 charging chutes and 1 discharge chute |
Screw Conveyor |
1 |
Ø x L |
315 x 11000 |
|
CS + Epoxy / AISI 316 |
|
Screw Compactor |
1 |
|
285 x 2200 |
|
CS + Epoxy / AISI 316 |
Horizontal with 1 charging chutes and 1 discharge chute |

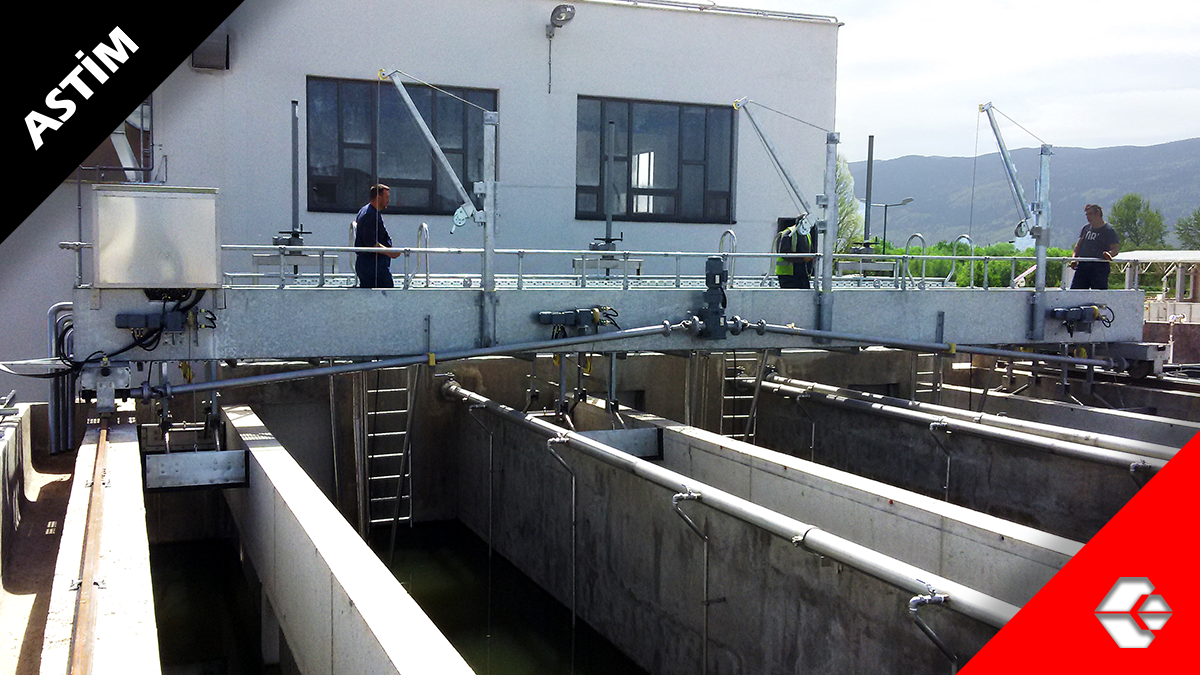

Grit & Grease Scraper |
1 |
W |
13245 |
4680 m3/h |
CS + Galv. / AISI 316 |
Traveling Bridge on triple type Grit and Grease chambers with Grit Pump and Skimmer (w/o rail) |

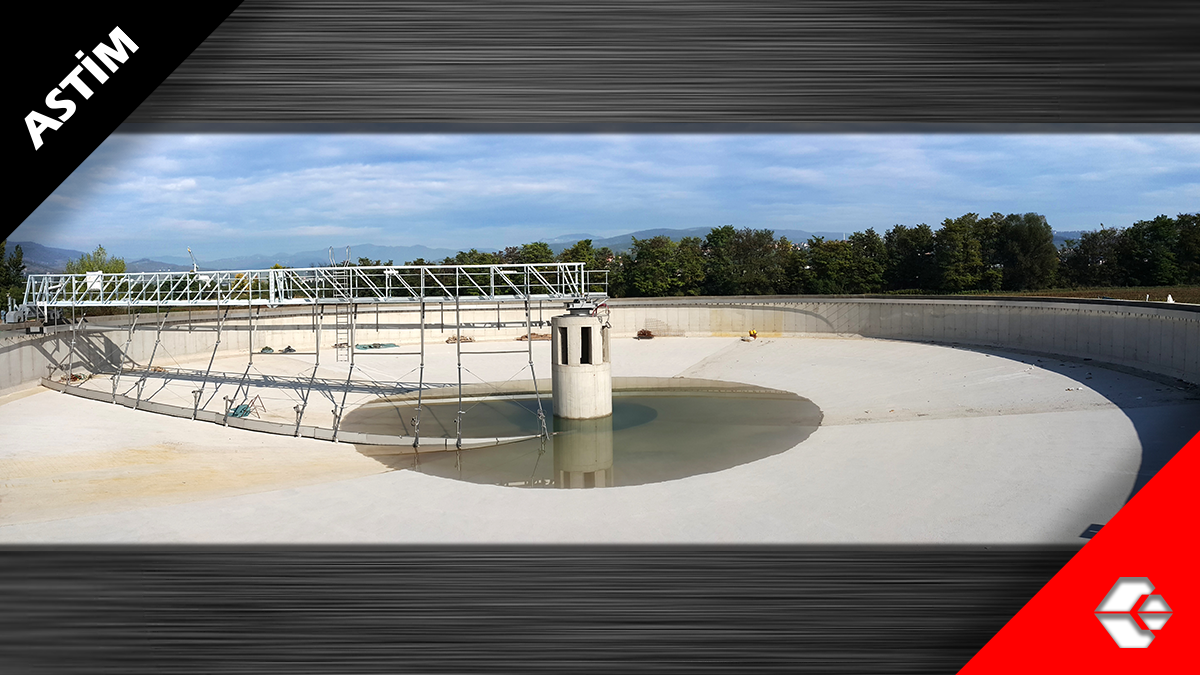

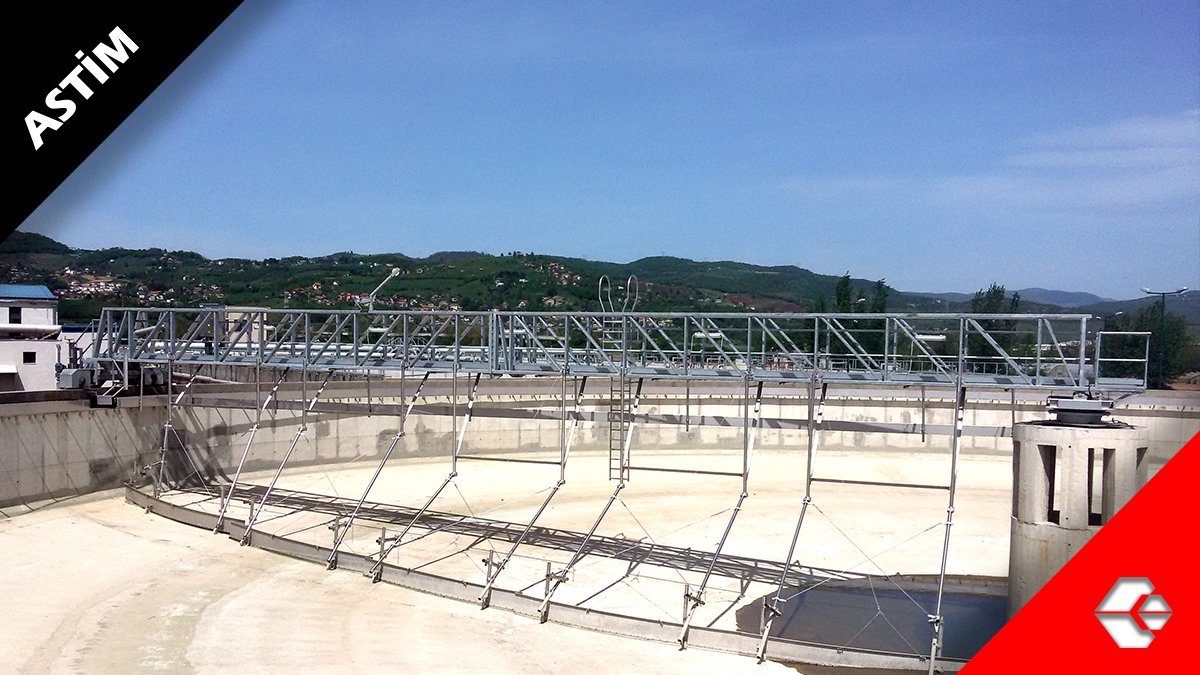

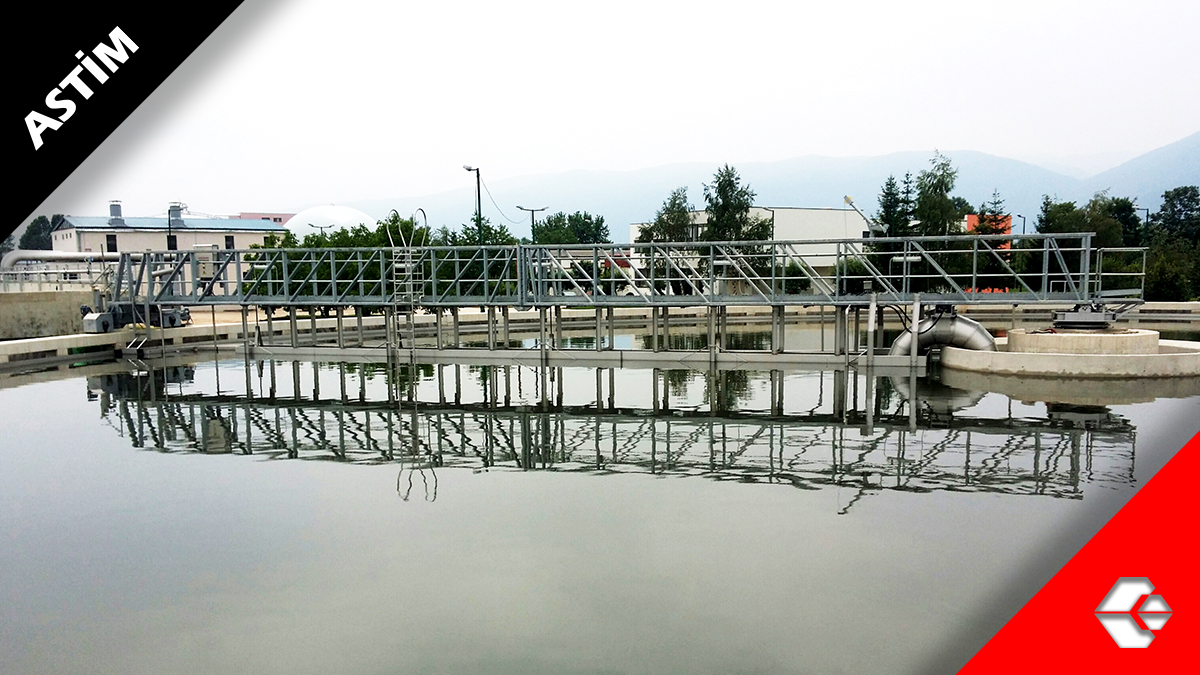

Rotating Sludge Scraper |
2 |
Ø |
52000 |
|
CS + Galv. / AISI 316 |
Half Rotating Bridge w/ Scraper and Skimmer |
Rotating Sludge Scraper |
2 |
Ø |
52000 |
|
CS + Galv. / AISI 316 |
Half Rotating Bridge w/ Scraper and Skimmer |

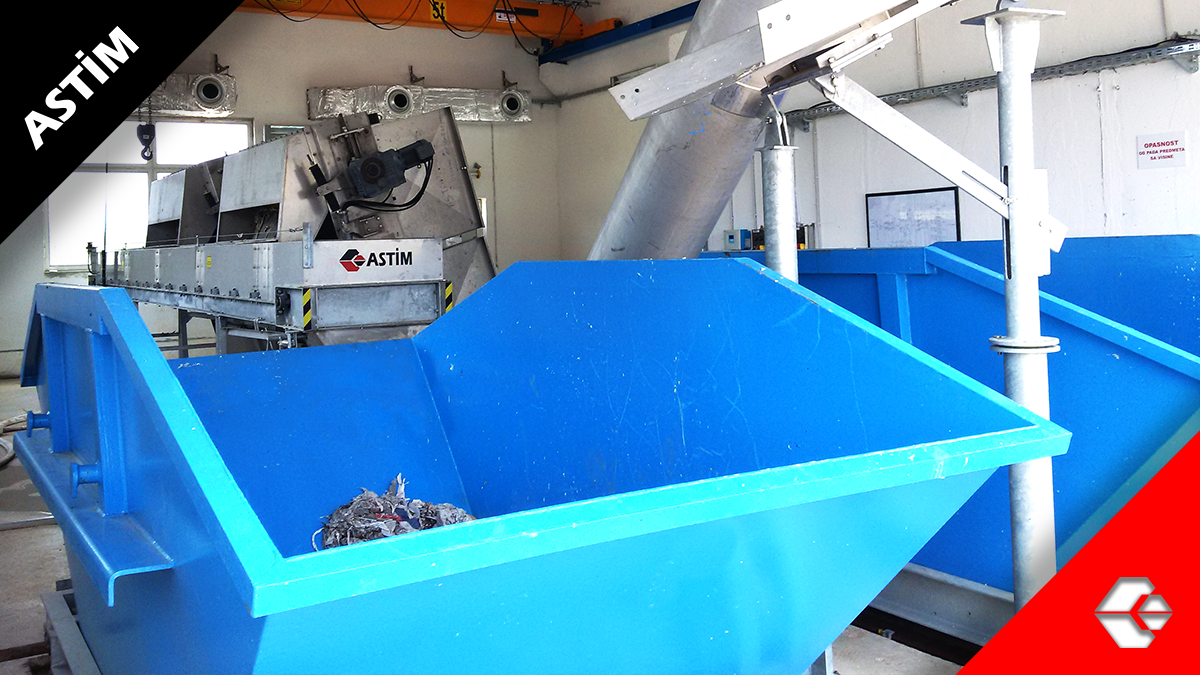

Various Containers |
8 |
|
13200 |
|
CS + Galv. / AISI 316 |
Traveling Bridge on triple type Grit and Grease chambers with grit pump and surface skimmer (w/ rail) |
Screw Conveyor |
3 |
Ø x L |
360 x 10000 |
|
CS + Epoxy / AISI 316 |
|
