| EQUIPMENT |
QTY |
DIM |
|
UNIT CAPACITY |
MATERIAL |
SPECIFICATION |

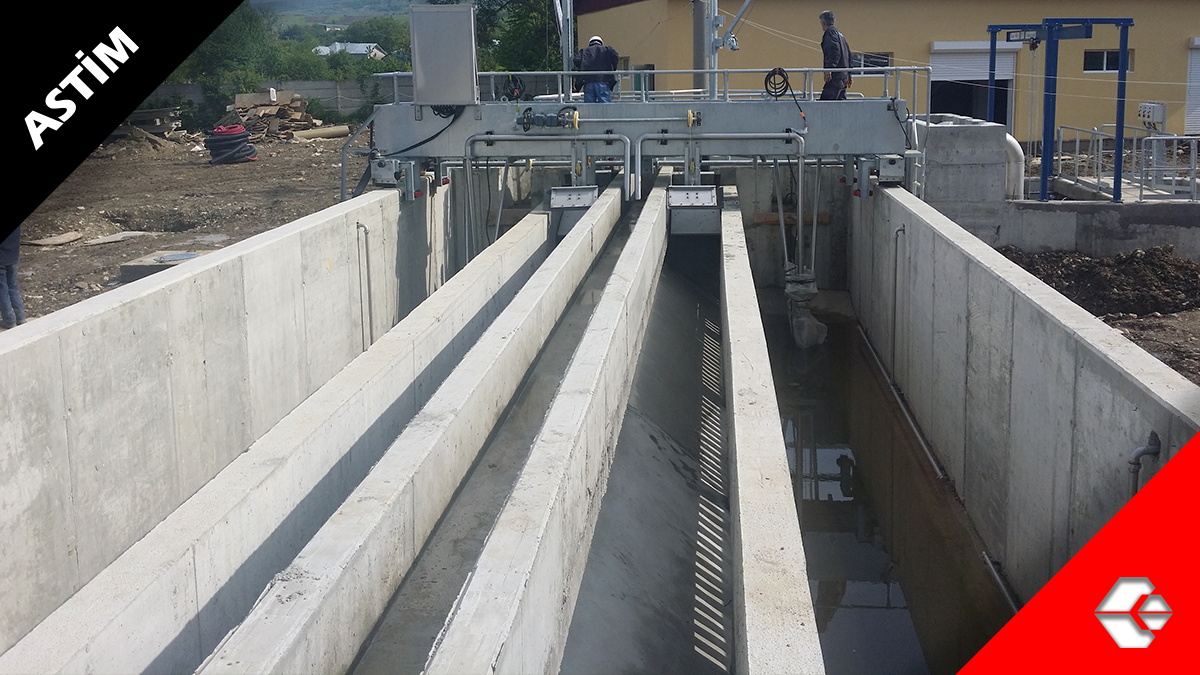

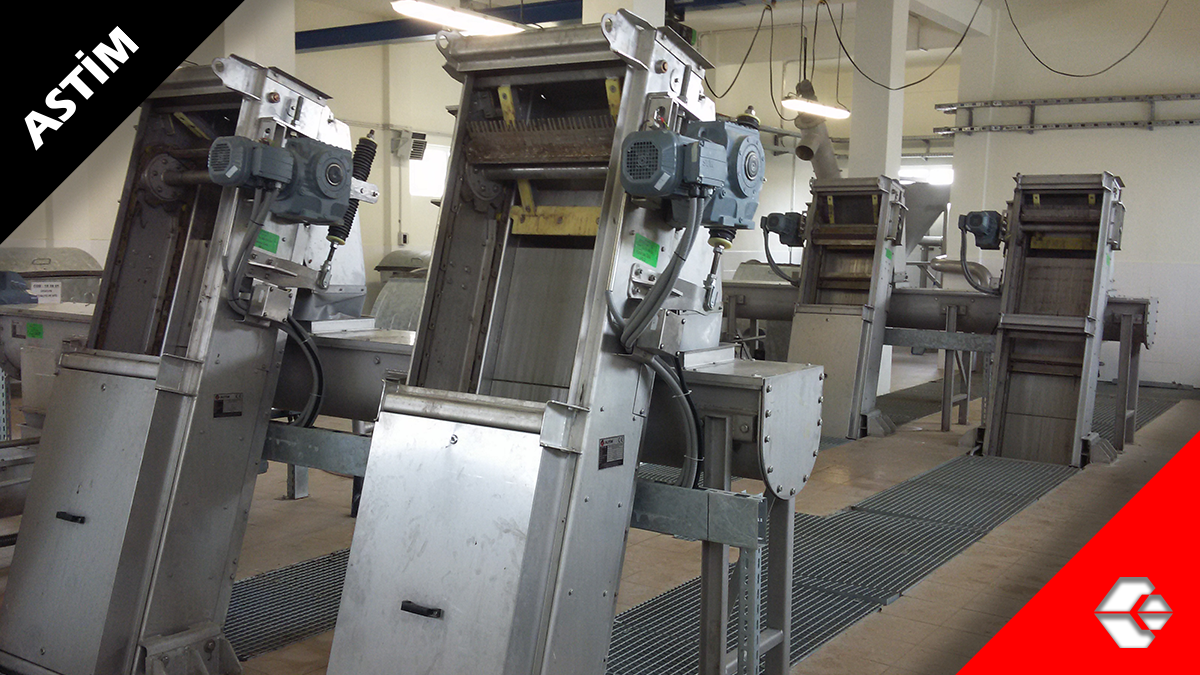

| Front Raked Bar Screen |
5 |
W x H |
800 x 1900 |
- |
AISI 316 |
75° inclined with 30 mm bar spacing / BUHUSI - NORD - SUD |
| Manual Raked Bar Screen |
3 |
|
800 X 1600 |
|
AISI 316 |
75° inclined with 30 mm (Coarse) and 10 mm (Fine) bar spacing / BUHUSI - NORD - SUD |

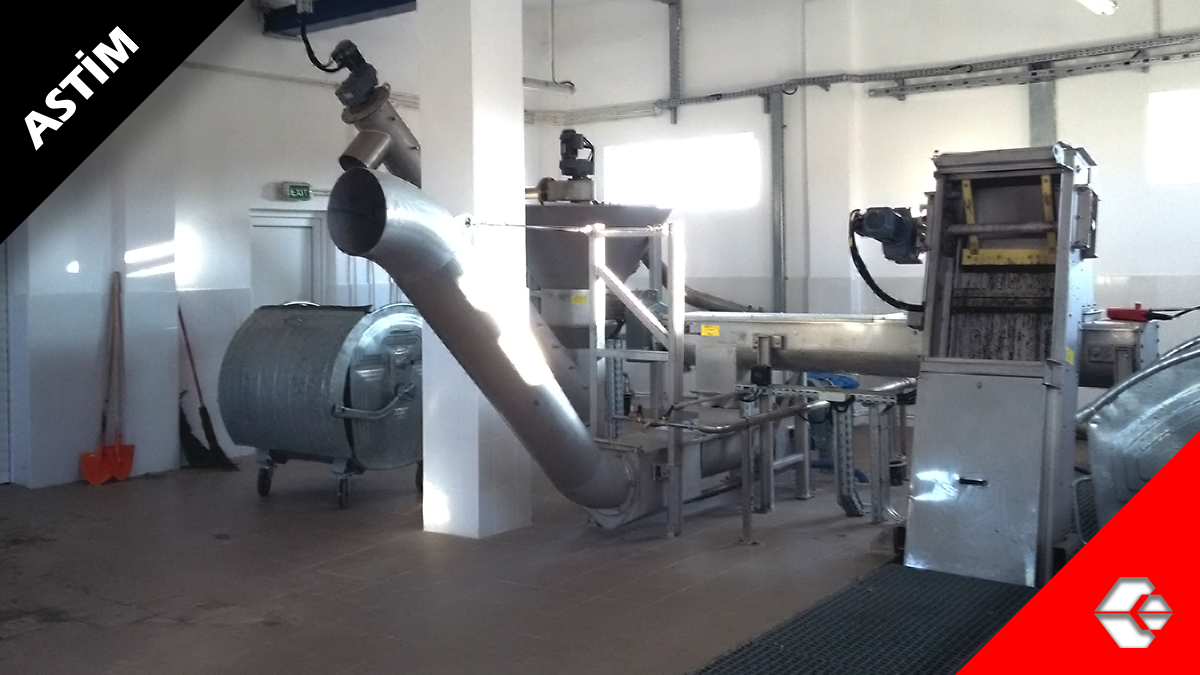

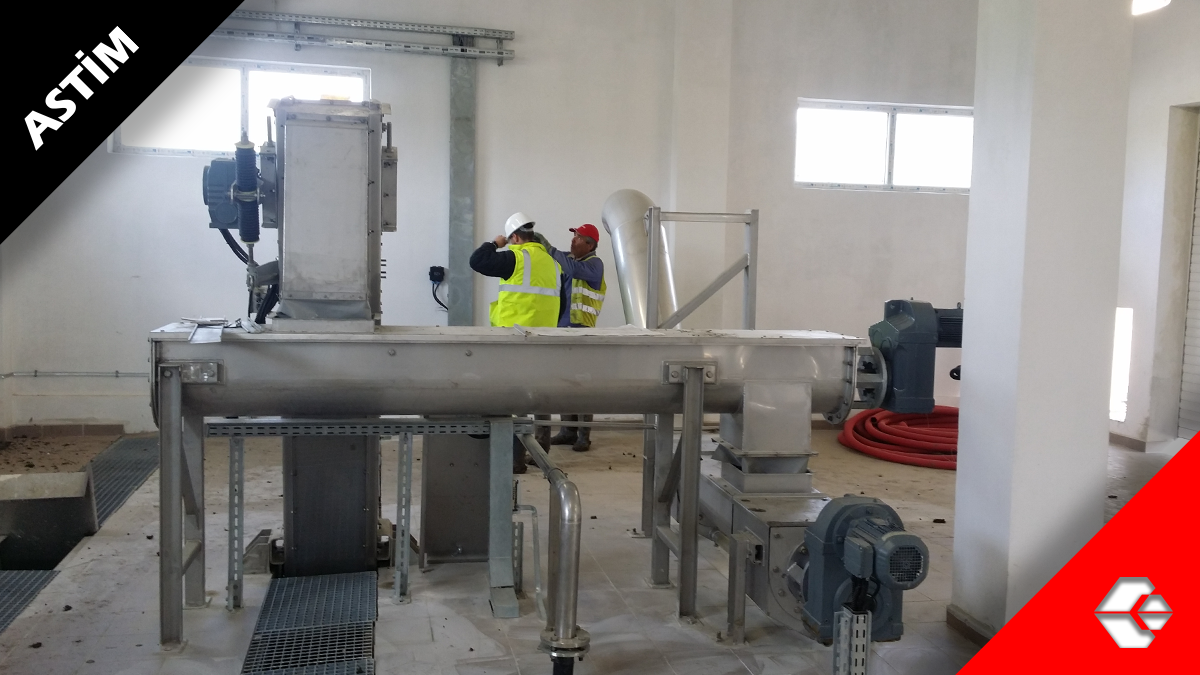

| Screw Conveyor |
3 |
Ø x L |
315 x 4500 |
1 m3/h |
CS + Epoxy / AISI 316 |
Horizontal with 2 charging chutes and 1 discharge chute |
| Screw Conveyor & Compactor |
3 |
|
315 X 2000 |
1 m3/h |
CS + Epoxy / AISI 304 |
Horizontal with 1 charging chutes and 1 discharge chute |
| Front Raked Bar Screen |
5 |
W x H |
800 x 1900 |
- |
AISI 316 |
75° inclined with 30 mm bar spacing / BUHUSI - NORD - SUD |
| Manual Raked Bar Screen |
3 |
|
800 X 1600 |
|
AISI 316 |
75° inclined with 30 mm (Coarse) and 10 mm (Fine) bar spacing / BUHUSI - NORD - SUD |
| Screw Conveyor |
3 |
|
|
|
|
|
| Screw Compactor |
3 |
|
|
|
|
|
| Grit & Grease Scraper |
3 |
|
16000 |
|
CS + Galv. / AISI 316 |
Traveling Bridge on triple type Grit and Grease chambers with grit pump and surface skimmer (w/ rail) |
| Grit Washer-Seperator |
3 |
|
|
18 m3/h |
CS + Galv. / AISI 304 |
|

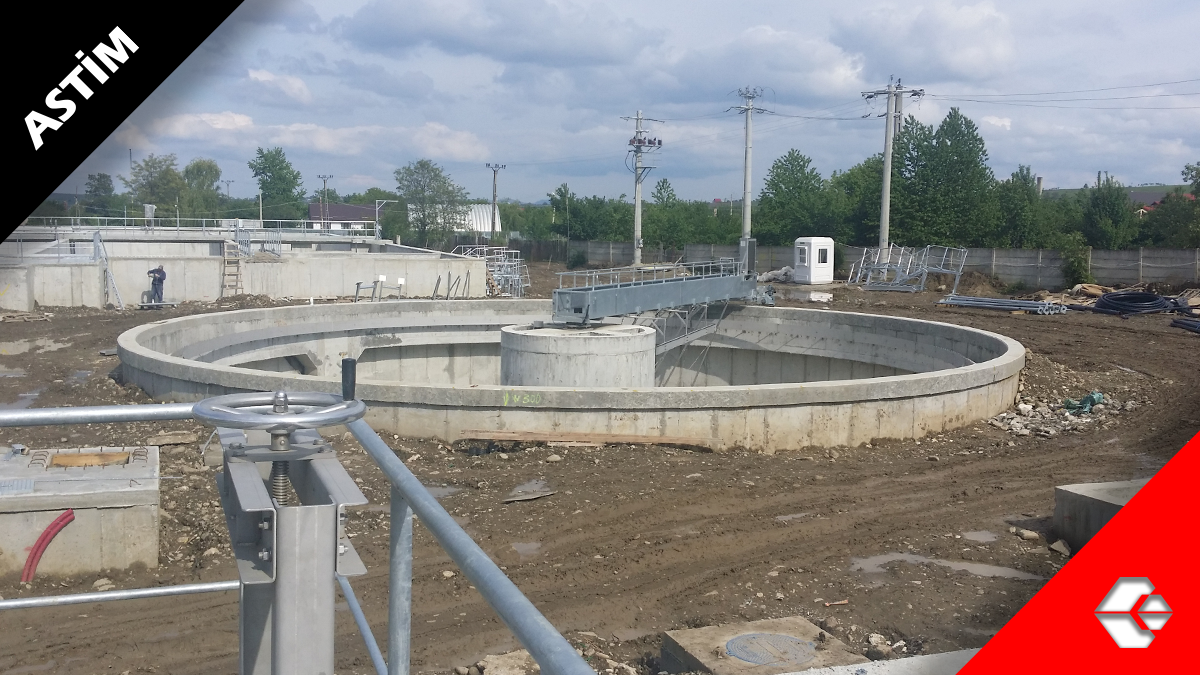

| Rotating Sludge Scraper |
6 |
Ø |
21000 |
666 m3/h |
CS + Galv. / AISI 304 |
Half Rotating Bridge w/ Scraper and Skimmer |
| Gravity Thickener |
2 |
Ø |
10400 |
|
CS + Galv. / AISI 304 |
|
| Screw Conveyor |
2 |
|
|
|
|
|
