| EQUIPMENT |
QTY |
DIM |
|
UNIT CAPACITY |
MATERIAL |
SPECIFICATION |

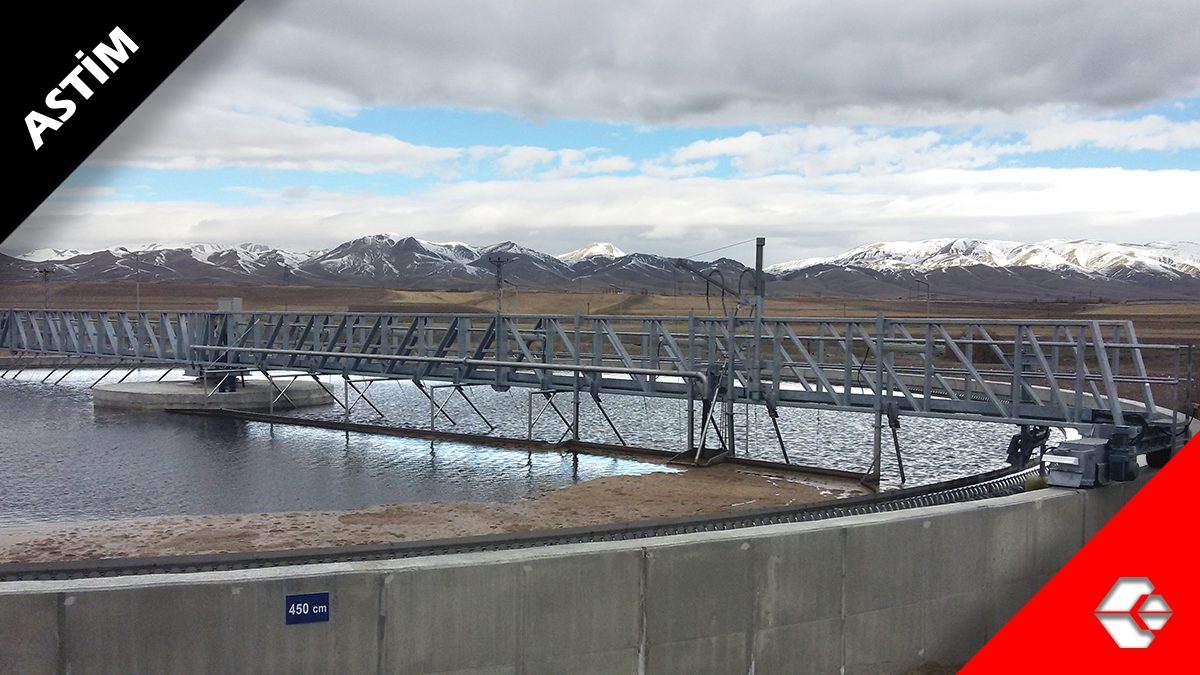

| Rotating Sludge Scraper |
3 |
Ø |
51000 |
- |
CS + Galv. / AISI 316 |
Diametrical Rotating Bridge with Scrapers and Scum Pump |

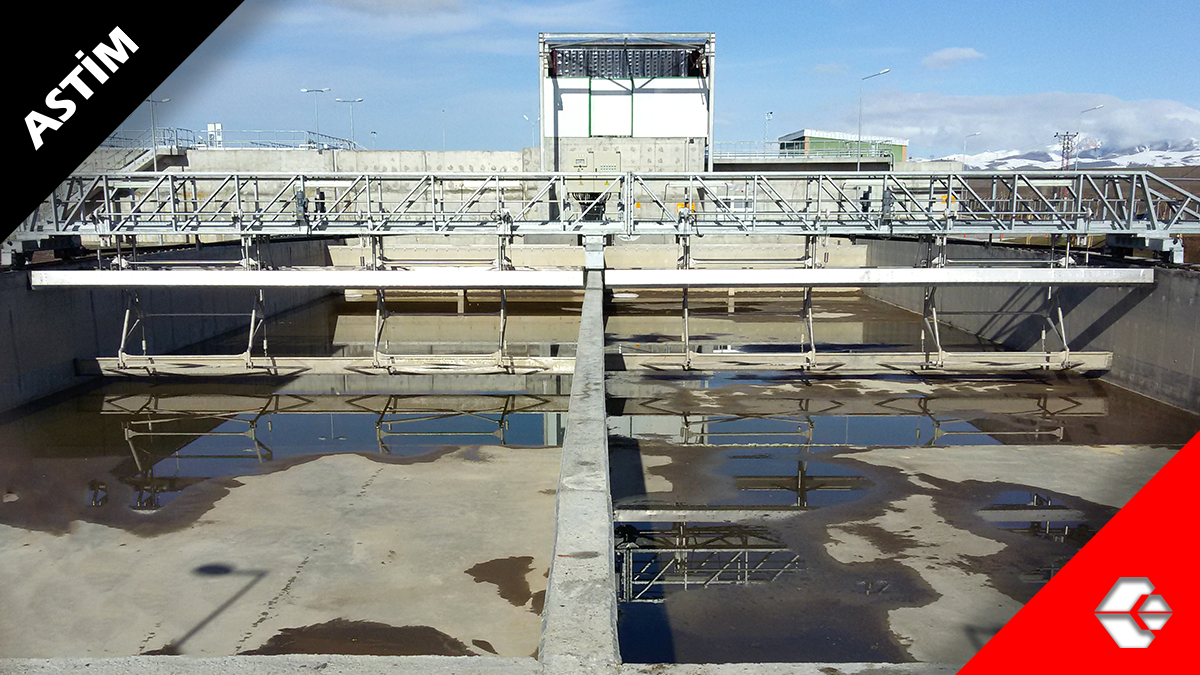

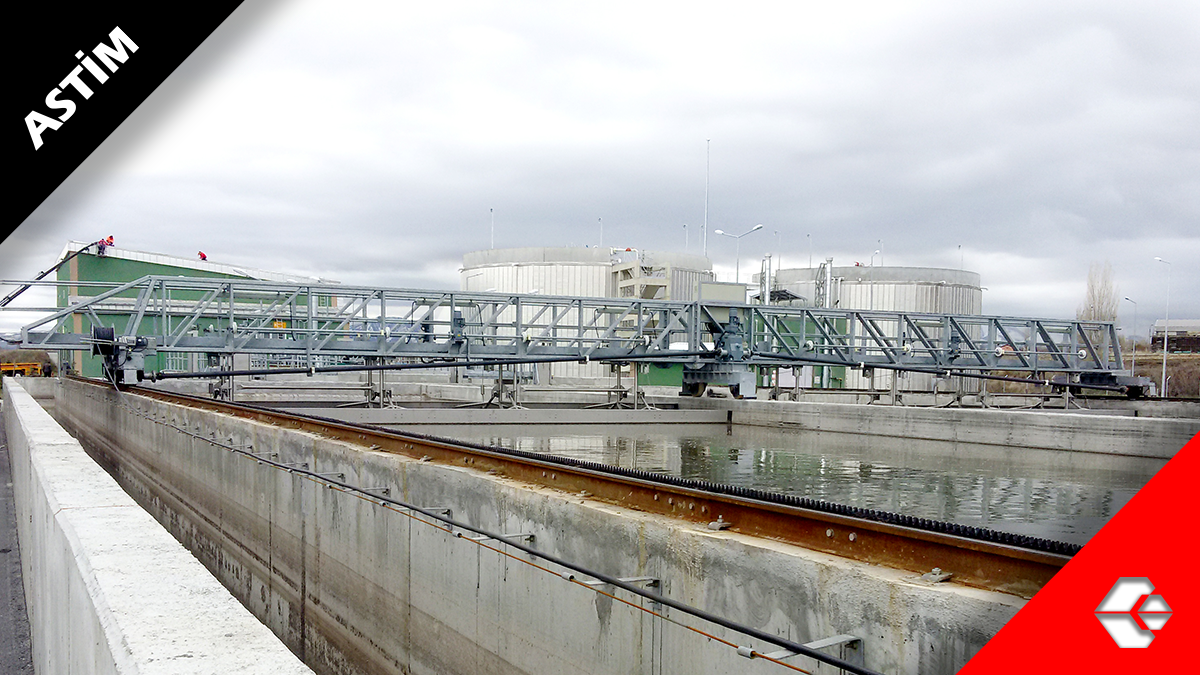

| Longitudinal Scraper |
1 |
W |
26550 |
- |
CS + Galv. / AISI 316 |
Traveling Bridge on twin type Longitudinal Tank with Scrapers and Skimmers |

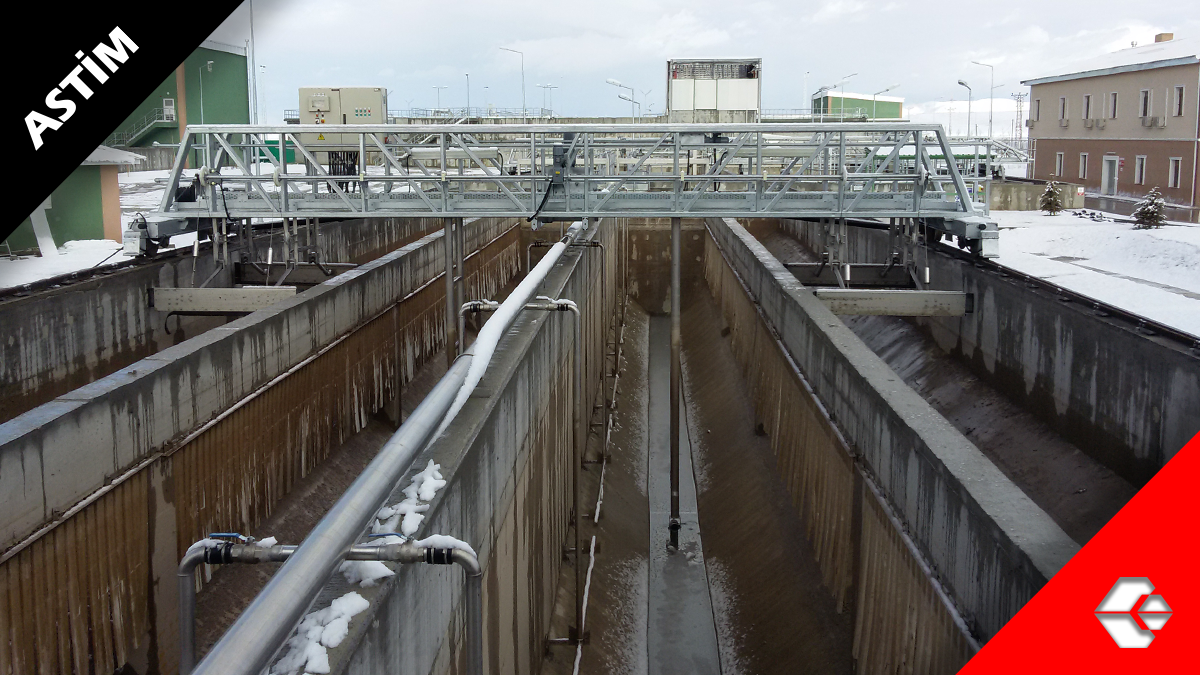

| Grit & Grease Scraper |
1 |
W |
10600 |
- |
CS + Galv. / AISI 316 |
Traveling Bridge on twin type Grit and Grease chambers with Grit Scraper and Skimmer |
| Picket Fence Thickener |
1 |
Ø |
13500 |
- |
AISI 316 |
Central Driven Picket Fence Scraper |

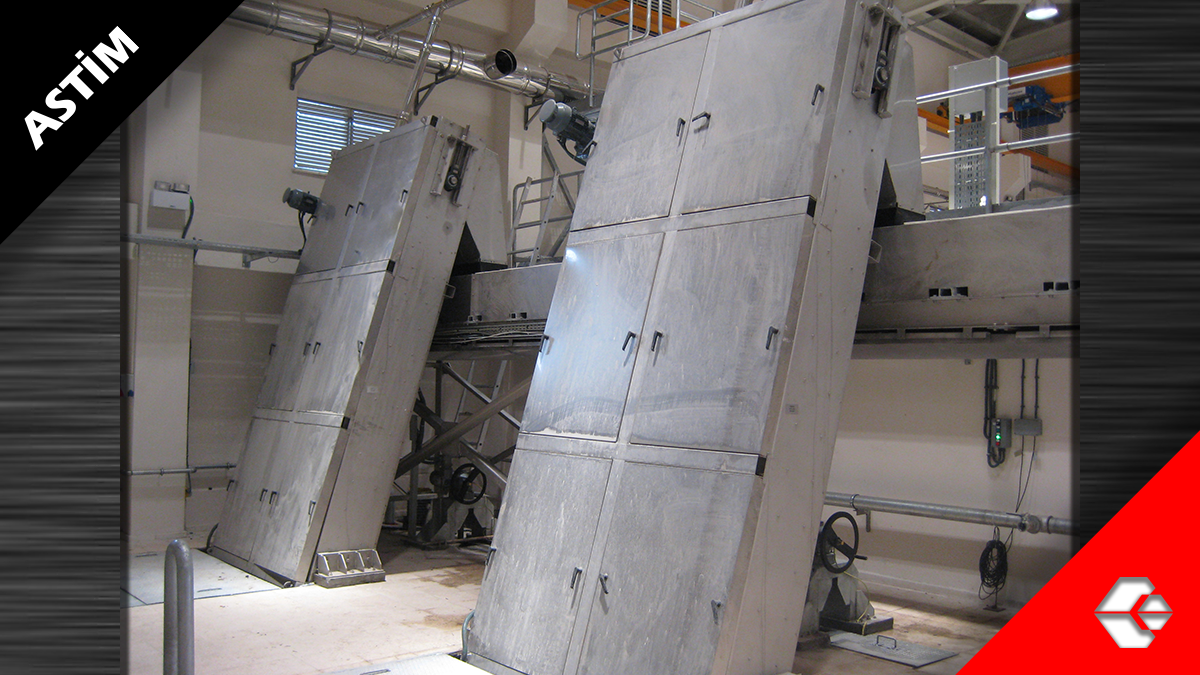

| Front Raked Bar Screen |
2 |
W x H |
2000 x 8600 |
5500 m3/h |
AISI 316 |
75° inclined with 20 mm bar spacing |
| Perforated Belt Screen |
4 |
W x H |
1200 x 3000 |
1850 m3/h |
AISI 316 |
60° inclined with Ø6 mm perforation |
| Grit Classifier |
1 |
Size |
14 |
40 m3/h |
AISI 316 |
- |
| Rotating Drum Screen - 90 |
1 |
|
90 |
DTI-90 / 2 mm - 355 m3/h |
AISI 316 |
Grease concentrator with 2mm slot width |
| Belt Conveyor |
1 |
W x L |
600 x 16000 |
5 m3/h |
AISI 316 |
Horizontal with 2 charging chutes and 1 discharge chute |
| Spiral Conveyor |
1 |
Ø x L |
Ø 285 x 8000 |
3,2 m3/h |
CS + Epoxy / AISI 316 |
Horizontal with 2 charging chutes and 1 discharge chute |
| Spiral Conveyor |
1 |
Ø x L |
Ø 285 x 13800 |
3,2 m3/h |
CS + Epoxy / AISI 316 |
Horizontal with 2 charging chutes and 1 discharge chute |
| Spiral Conveyor |
1 |
Ø x L |
Ø 315 x 16000 |
5,5 m3/h |
CS + Epoxy / AISI 316 |
16º inclined with 2 charging chutes and 1 discharge chute |
| Screw Conveyor & Compactor |
2 |
Ø x L |
Ø 285 x 3000 |
3,2 m3/h |
AISI 316 |
Horizontal with 1 charging chute and 1 riser pipe |
| Various Penstocks |
37 |
- |
- |
- |
AISI 316 |
- |
| Container |
35 |
- |
- |
- |
AISI 316 |
- |

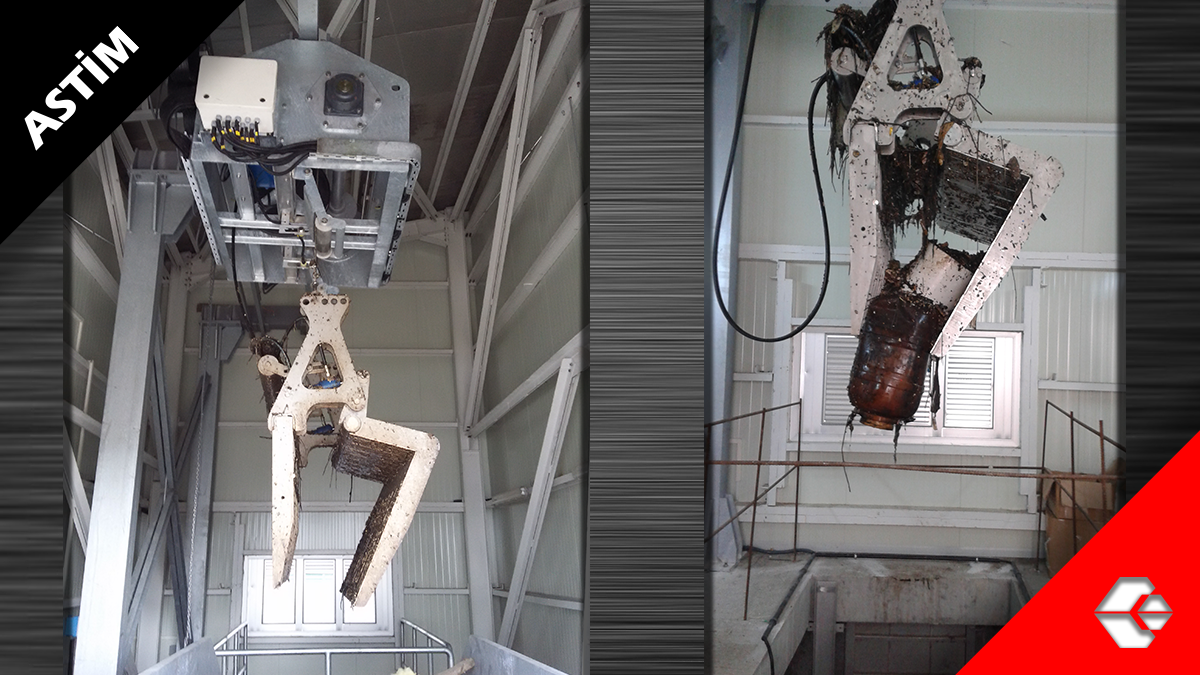

| Multi-Channel Coarse Screen |
1 |
- |
- |
- |
AISI 316 |
- |
